Max. working pressure: 6 bar
Temperature range: 5-60℃
Outlet center distance: 50 mm
Function and Feature
A dynamic distribution manifold can regulate the thermal medium independent from the pressure in the individual circuits of underfloor heating systems, to achieve automatic dynamic balancing.
Flow manifold complete with shut-off valves or flow indicators.
Flow manifold complete with dynamic distribution balancing units, which can adjust and balance the flow rate.
Retrun manifold complete with thermo-electric control head, which can adjust flow rate when the room temperature changes.
A dynamic distribution manifold fits to underfloor heating system and make it more comfortable and energy-efficient.

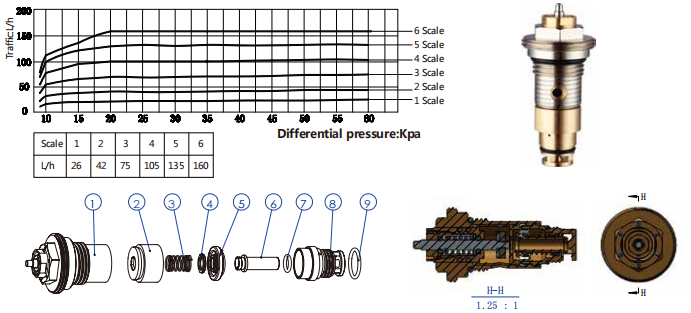

Flow chart
Features
- Dynamic Balancing: constant flow is achieved through the valve cartridge's auto-adjustment of the opening rate when ΔP of the system fluctuates.
- Precision calibrated valve plug keeps the flow deviation no greater than ±5%.
- The flow rate is factory preset multiple ΔP ranges available for each size.
- No need of re-balancing after system changes.
