    Water heating is one of the floor radiation heating, but also the most popular way of heating, it is quite advantageous compared to electric heating. Water heating is through the ground coil, there is a circulation of hot water in the pipeline, through the floor radiation layer in the heat medium, uniformly heating the whole ground, using the ground's own heat storage and the law of heat upward radiation from the bottom to the top to achieve the purpose of heating.

A complete water heating system consists of four parts:

1. Boiler heating furnace can be described as the heart of the entire heating system, its efficient and stable operation is directly related to whether the floor heating system can continue to be effective heating.

Function: Most wall hanging furnaces can set their own heating time, household calculation. Some brands can also provide domestic hot water. It is more advanced, energy-saving and safe than traditional heating, and can be installed on the wall and in the corner of the room, with a price of thousands to tens of thousands of yuan.

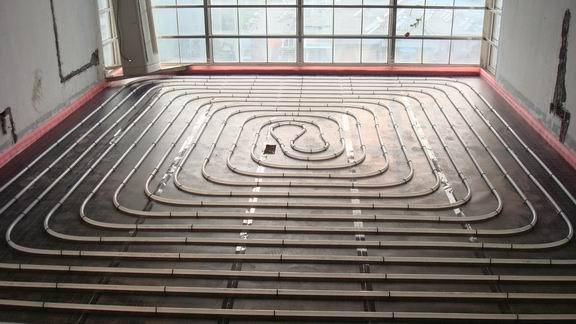

2. The ground part of the ground part is usually composed of insulation layer, reflection film, heating pipe, backfill layer, etc. The insulation layer is usually 50px EPS or XPS material; Most of the reflecting films are emitting aluminum films. The heating pipes are mainly PEX pipes, followed by PE-RT and PB pipes.

Function: The cost of insulation materials does not account for a large part of the budget of the entire floor heating system, but it can make the stable operation of the entire floor heating system, and also allow the heat to be concentrated in the right place to reduce the heat loss to a minimum. A complete heating system is indispensable to the good pipe, the heat must be laid on the ground through the floor heating pipe to each room that needs heating.

3. The diversity collector is a water flow distribution and gathering device composed of a water distributor and a water collector. Usually in ground heating areas, large areas need to be divided into small blocks to control, or there are multiple functional rooms in a house that need to be controlled separately. At the same time, the floor heating system is controlled by hydraulic characteristics, and the floor heating coil is limited to a certain length. This requires that each heating room in the same ground heating area or the same house be divided into multiple loops, and each loop needs to be turned off and flow regulation respectively.

Function: The floor heating structure system is the buried heating end, most of its structure is buried under the floor, only the water collector leaks out of the outside, as a key component of the floor heating control, is very important. On the one hand, it distributes the water flow of the heating main pipe according to demand to ensure that the flow of each regional branch loop meets the needs of the heating load. At the same time, it also collects the water flow of each branch loop and inputs it into the return water main pipe to achieve cyclic operation. On the other hand, since each functional area (room) needs to be heated according to demand, in order to facilitate the adjustment and control of the water distributor and collector branch loops are set up valves, valves bear the task of flow distribution and regulation.

4. Thermostat thermostat is a wall hanging furnace must accessories, is an integrated programmer and software to achieve intelligent control of the temperature switch, can freely adjust the indoor temperature, and can be set according to user requirements for various time periods of switch and a variety of preset mode of automatic operation to adjust the room temperature; Bring it to a comfortable temperature.

Function: The thermostat equipped with most floor heating is an intelligent thermostat. The room heating system is equipped with a thermostat, especially an intelligent thermostat, which is an extremely prominent and most important link in the energy-saving heating comprehensive system.
