Thermostatic Radiator Valve Series- product

Product Details

Function

This series TRV in both manual and automatic is used for end controlling of heating system. It can adjust automatically the quantity of heat through the radiator to maintain the setting temperature in the room.

Working Theory

XAJ3XX series TRV head should be used together with XAJ1XX series TRV. A TRV head contains a tempera-ture sensor, an adjustment cover with scale and related mechanical working parts. When the temperature of room changes from the setting temperature, the valve rod will get movement because of the expansion and contraction of the sensor, and to adjust the quantity of heat through the radiator.

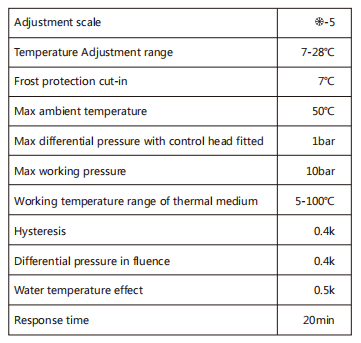

Parameter And Construction

Match between the scale and temperature

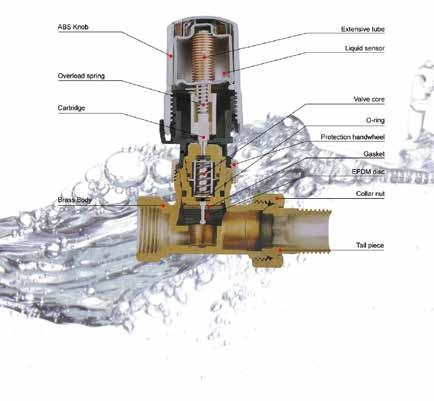

Valve construction feature

The valve rod is made of stainless steel and the gasket is made of double-EPDM O ring, in which there will hardly have any leakage during long time working. Meanwhile, the special design of piston can optimize the hydraulic features, reduce noise and reduce the flow rate, and the large drift diameter between piston and seat can control the pressure loss.

Use And Instruction

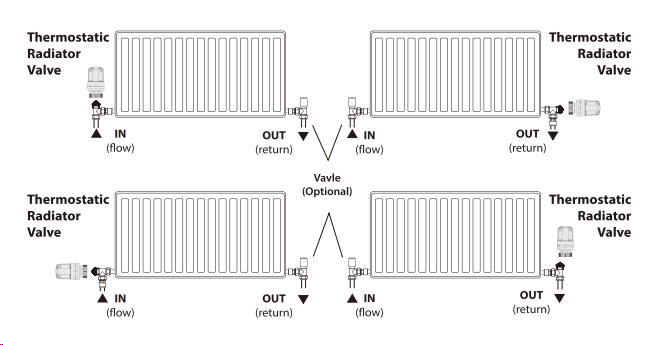

The thermostatic radiator valve can be installed on either side of the radiator, in a vertical or horizontal position. lf a lockshield valve is also used on the same radiator, install it on the opposite side of he radiator. See figure 1.0:
